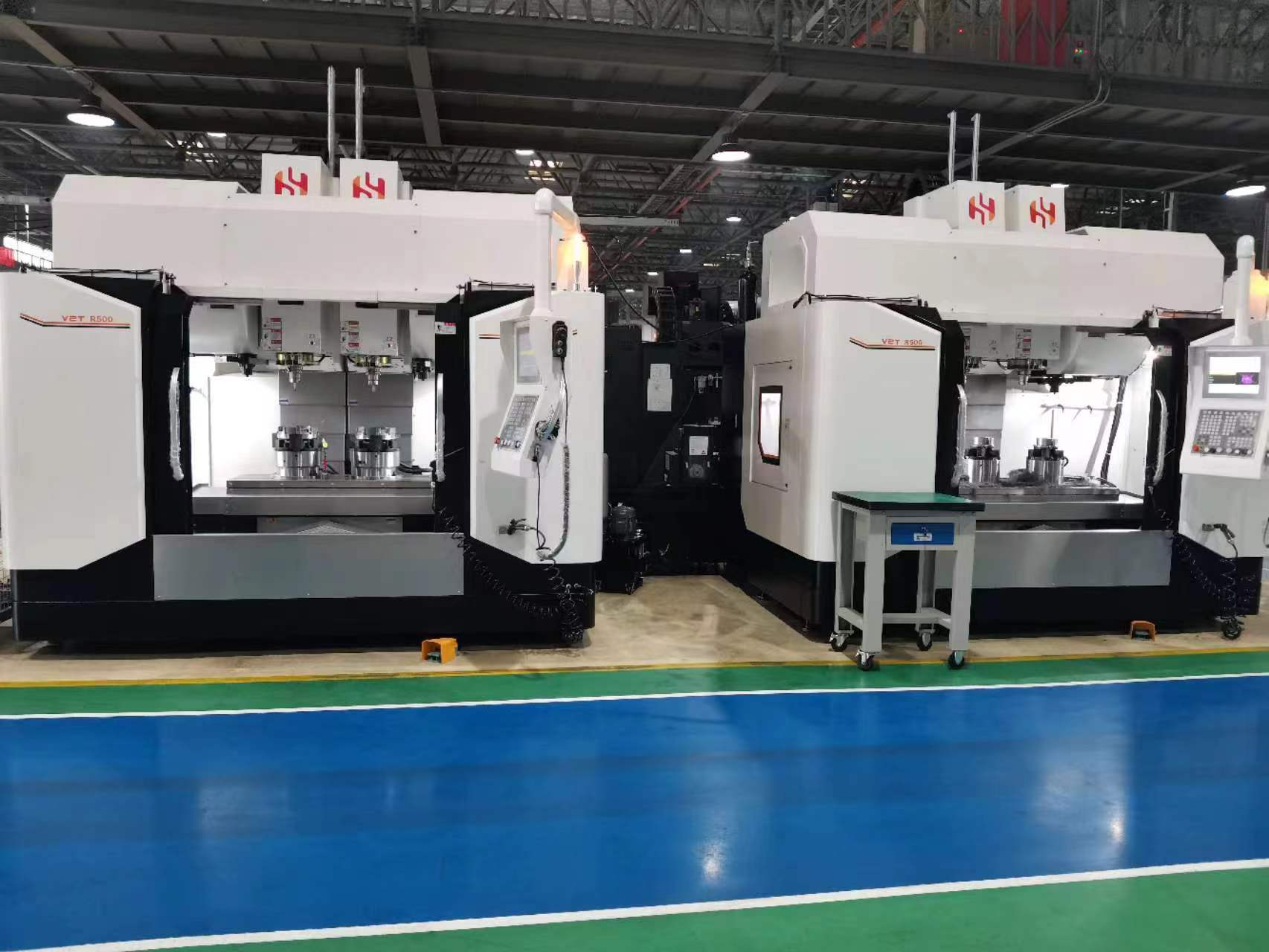

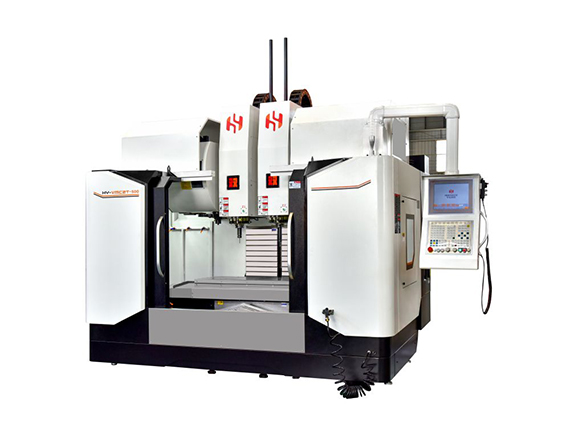

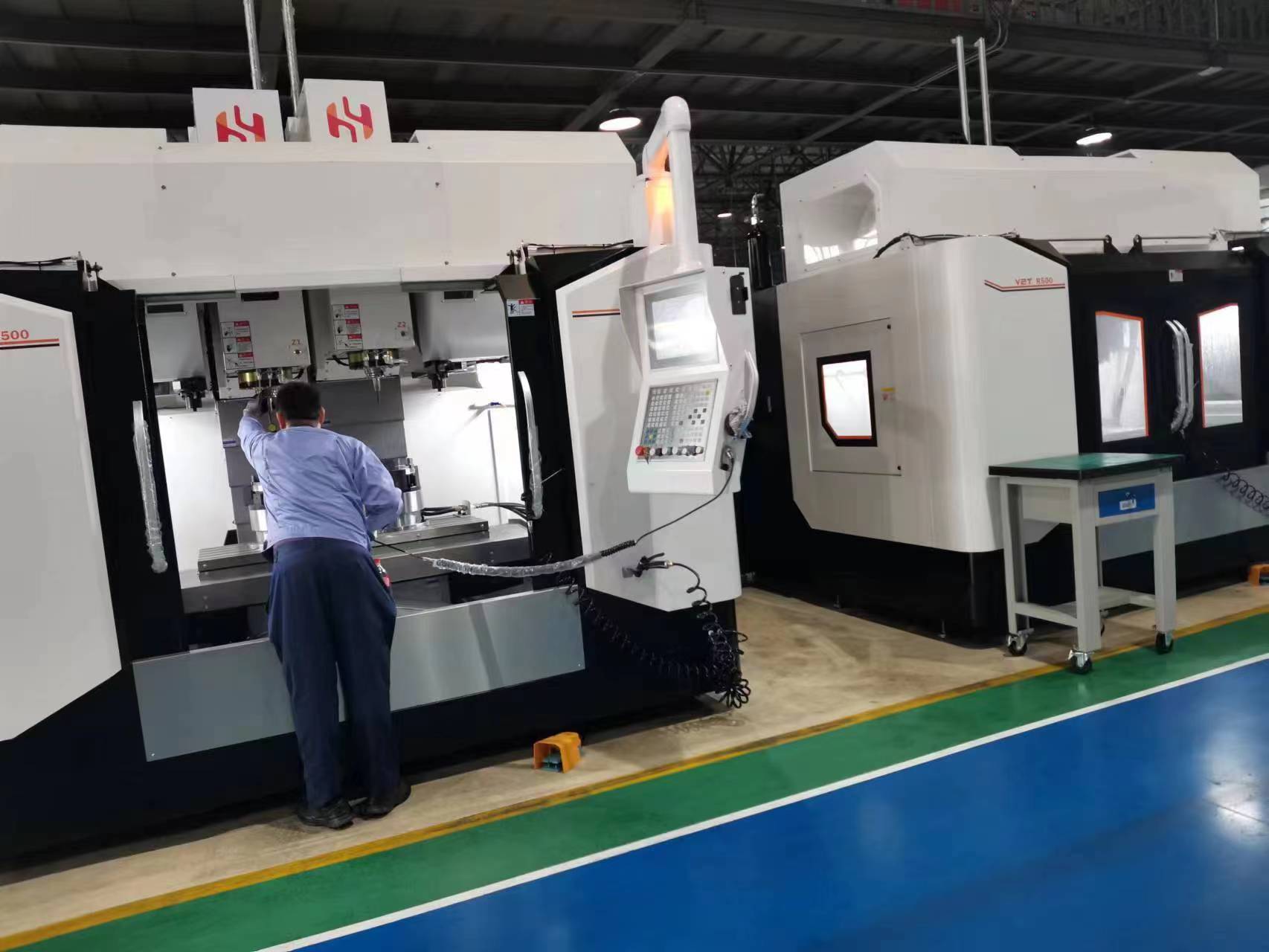

V2T R400(BT40)/R500(BBT40)/R500(BBT50)/R500(BBT50)
Liên hệ
Tình trạng:
Còn hàng
V2T R400(BT40)/R500(BBT40)/R500(BBT40)/R500(BBT50)
| Twin Spindle Vertical Machining Center | ||||||
| Item | Unit | V2T R400(BT40) | V2T R500（BBT40） | V2T R500(BBT50) | V2T R550(BT40) | |
| Machining range | Travel（X/Y/Z1(Z2)） | mm | 800/600/650(650) | |||
| Table to spindle nose | mm | 130-780 | 170-820 | 130-780 | ||
| spindle center to column guard | mm | 600 | ||||
| Table | Table Size(L×W) | mm | 1300×500 | |||
| table Max load | kg | 800 | ||||
| T-slot / width / spacing | mm | 18×5×100 | ||||
| Spindle | Speed | rpm | 8000 | 6000 | 8000 | |
| Taper hole of spindle | BT40 | BBT40 | BBT50 | BT40 | ||
| Spindle motor | KW | 7.5/11 | 15/22.5 | 7.5/11 | ||
| Distance of two spindle centers | mm | 400±0.02 | 500±0.02 | 550±0.02 | ||
| Speed | Axis rapid traverse（X/Y/Z1(Z2)） | m/min | 36/36/36(36) | |||
| Cutting Feed | mm/min | Jan-00 | Jan-00 | Jan-00 | ||
| Tool Magazine | Tools | pcs | 24×2=48 | |||
| tool choosing way | any one | |||||
| Tool changing time （T-T） | S | 2.5 | 6 | 2.5 | ||
| Machine Precision | Positioning accuracy（X/Y/Z） (JIS) | mm | ±0.005/300 | |||
| repeatable accuracy（X/Y/Z） (JIS) | mm | ±0.003/300 | ||||
| Others | Power Capacity volume | KVA | 65 | 95 | 65 | |
| cooling box volume | L | 440 | ||||
| Machine overall dimension（L×W×H） | mm | 4200×3400×3770 | ||||
| Machine Weight | T | 8.5 | 9 | 8.5 | ||
