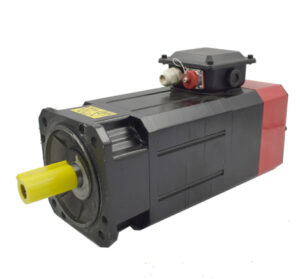

18.5KW AC Spindle Servo Motor:
1. SZGH13-3-117-18.5/22-4-1500: 18.5KW AC Spindle Servo Motor
CW&CCW: Speed Error +/- 1RPM , Acceleration/Deceleration time of 3000RPM : 1second;
Independent Quasi Stop: Positioning with High Precision(0.03。);
Rigid Tapping: Max speed of tapping is 3000RPM ,Min of dental work is M3;
Function of C-Axis: Indexing Accuracy: +/-1 Pulse ; Turning/Milling: 0.01rpm;
Cutting in Low Speed: Overload(3 times holding torque),ensure stablity of cutting,applied in casting process;
High-Speed Precision Machining: Constant power output over 4000RPM,stable ratoting speed,ensure finish;
Strong Applicability: Match for CNC System , PLC etc.
Powerful Development : Custome Manufacturing.
|
Motor Model |
Rated Power(KW) |
Rated Torque(Nm) |
Rated Current(A) |
Max Speed(RPM) |
Rated Speed(RPM) |
|
1.5 |
9.5 |
3.7 |
8000 |
1500 |
|
|
2.2 |
14 |
6 |
8000 |
1500 |
|
|
3.7 |
24 |
9.5 |
8000 |
1500 |
|
|
5.5 |
35 |
13 |
8000 |
1500 |
|
|
7.5 |
48 |
17 |
8000 |
1500 |
|
|
11 |
71 |
23.5 |
8000 |
1500 |
|
|
15 |
95 |
31 |
8000 |
1500 |
|
|
18 |
117 |
38 |
8000 |
1500 |
|
|
22 |
140 |
45 |
8000 |
1500 |
|
|
30 |
191 |
60 |
6000 |
1500 |
|
|
37 |
235 |
75 |
6000 |
1500 |
|
|
45 |
286 |
90 |
6000 |
1500 |
|
|
55 |
350 |
110 |
6000 |
1500 |
|
|
75 |
478 |
148 |
4500 |
1500 |
|
|
90 |
573 |
176 |
4500 |
1500 |
|
|
110 |
700 |
210 |
4500 |
1500 |
|
|
132 |
840 |
255 |
4000 |
1500 |
